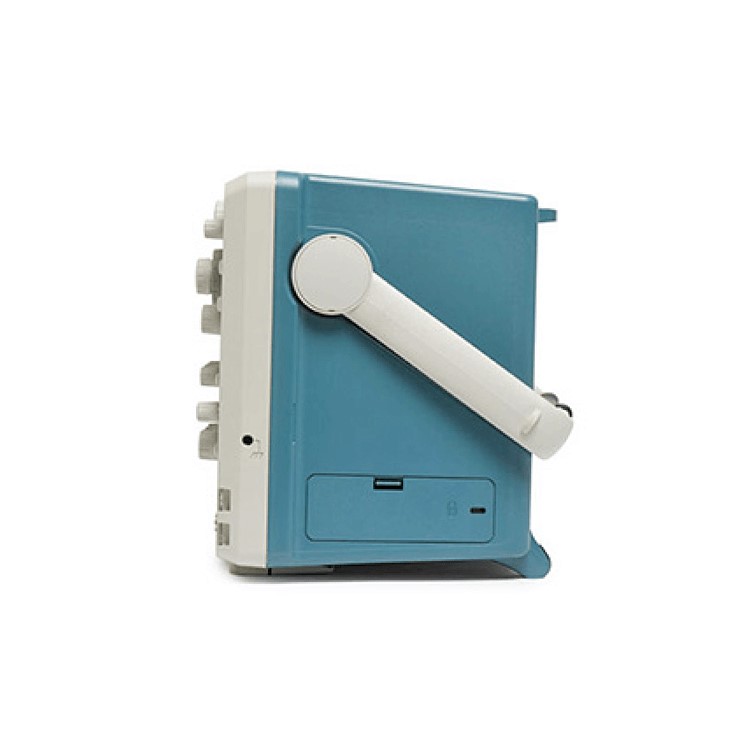

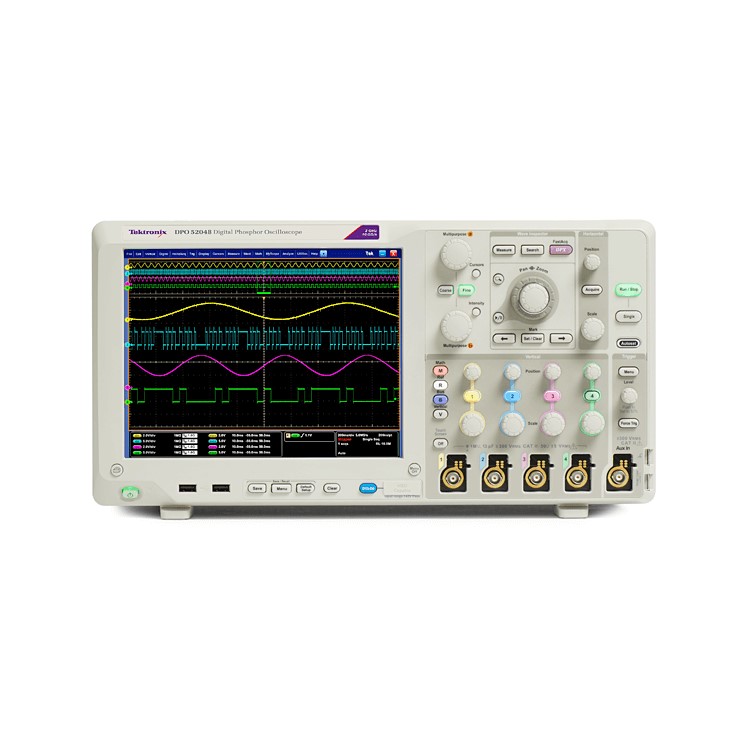

Model DPO5034B
Maker Tektronix
Description Oscilloscope; Digital Phosphor, 350MHz, 5GS/s
Rental 문의요망
Stock 문의요망
Oscilloscope; Digital Phosphor, 350MHz, 5GS/s

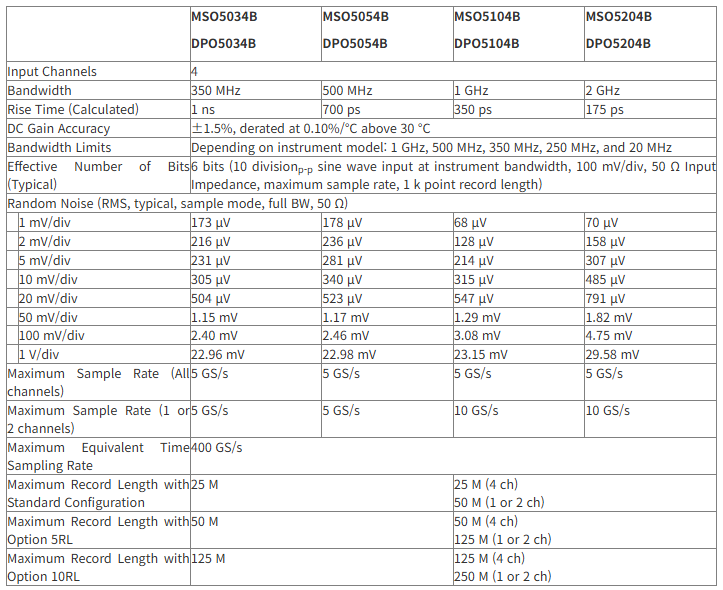

SPECIFICATIONS
Vertical system analog channels
Input coupling
AC, DC
Input resistance
1 MΩ ±1%, 50 Ω ±1%
Input sensitivity range
1 MΩ: 1 mV/div to 10 V/div
50 Ω: 1 mV/div to 1 V/div
Vertical resolution
8 bits (>11 bits with Hi Res)
Maximum input voltage, 1 MΩ
300 VRMSCAT II, with peaks ≤ ±425 V
For <100 mV/div derate at 20 dB/decade above 100 kHz to 30 VRMSat 1 MHz, 10 dB/decade above 1 MHz
For ≥100 mV/div derate at 20 dB/decade above 3 MHz to 30 VRMSat 30 MHz, 10 dB/decade above 30 MHz
Maximum input voltage, 50 Ω
5 VRMS, with peaks ≤ ±20 V
Position range
±5 divisions
Delay between any Two Channels (Typical)
≤100 ps (50 Ω, DC coupling and equal V/div at or above 10 mV/div)
Offset range
1 mV/div – 50 mV/div
1 MΩ: ±1 V
50 Ω: ±1 V
50.5 mV/div – 99.5 mV/div
1 MΩ: ±0.5 V
50 Ω: ±0.5 V
100 mV/div – 500 mV/div
1 MΩ: ±10 V
50 Ω: ±10 V
505 mV/div – 995 mV/div
1 MΩ: ±5 V
50 Ω: ±5 V
1 V/div – 5 V/div
1 MΩ: ±100 V
50 Ω: ±5 V
5.05 V/div – 10 V/div
1 MΩ: ±50 V
50 Ω: NA
Offset Accuracy
±(0.005 × |offset – position| + DC Balance)
Note: Both position and constant offset term must be converted to volts by multiplying by the appropriate volts/div term
Channel-to-channel isolation (Any two channels at equal vertical scale settings) (typical)
≥100:1 at ≤100 MHz and ≥30:1 at >100 MHz up to the rated BW
Vertical system digital channels
Input Channels
16 Digital (D15 – D0)
Thresholds
Per-channel Thresholds
Threshold Selections
TTL, ECL, User
User-defined Threshold Range
±40 V
Threshold Accuracy
±(100 mV + 3% of threshold setting)
Maximum Input Voltage
±42 Vpeak
Input Dynamic Range
30 Vp-p≤200 MHz
10 Vp-p>200 MHz
Minimum Voltage Swing
400 mV
Input Impedance
100 kΩ
Probe Loading
3 pF
Vertical Resolution
1 bit
Horizontal system analog channels
Maximum Duration at Highest Real-Time Sample Rate
25 ms
Time Base Range
12.5 ps/div to 8,000,000 s/div
Time resolution (in ET/IT mode)
2.5 ps/div
Time base delay time range
–10 divisions to 1000 s
Channel-to-channel deskew range
±75 ns
Time base accuracy
±5 ppm over any ≥1 ms interval
Horizontal system digital channels
Maximum Sample Rate (Main)
500 MS/s (2 ns resolution)
Maximum record length (main)
25 M Standard
Up to 40 M with Record Length options
Maximum sample rate (MagniVu)
16.5 GS/s (60.6 ps resolution)
Maximum record length (MagniVu)
10k points centered around the trigger
Minimum detectable pulse width
1 ns
Channel-to-channel skew (typical)
200 ps
Maximum input toggle rate
500 MHz at minimum input swing; higher toggle rates can be achieved at higher amplitudes
Trigger system
Main trigger modes
Auto, Normal, and Single
Trigger coupling
DC, AC, HF Rej (attenuates >50 kHz), LF Rej (attenuates <50 kHz), Noise Reject (reduces sensitivity)
Trigger holdoff range
250 ns to 8 s
Enhanced triggering
User-selectable; corrects the difference in timing between the trigger path and the acquired data (not available in FastAcq)
Trigger jitter
≤100 fsRMSusing Enhanced Trigger
≤10 psRMSwithout Enhanced Trigger and in Fast Acq mode
≤100 psRMSfor non-Edge-type trigger modes
Trigger sensitivity
Internal DC coupled
For 1 MΩ: 1 mV/div to 4.98 mV/div: 0.75 div from DC to 50MHz, increasing to 1.3 div at instrument bandwidth ≥5 mV/div: 0.40 div from DC to 50 MHz, increasing to 1 div at instrument bandwidth
For 50 Ω (MSO5204, DPO5204, MSO5104, DPO5104): 0.40 div from DC to 50 MHz, increasing to 1 div at instrument bandwidth
For 50 Ω (MSO5054, DPO5054, MSO5034, DPO5034): 1 mV/div to 4.98 mV/div: 0.75 div from DC to 50MHz, increasing to 1.3 div at instrument bandwidth ≥5 mV/div: 0.40 div from DC to 50 MHz, increasing to 1 div at instrument bandwidth
External (auxiliary input) 1 MΩ
200 mV from DC to 50 MHz, increasing to 500 mV at 250 MHz
Trigger level range
Any channel
±8 divisions from center of screen
External (auxiliary input)
±8 V
Line
Fixed at about 50% of line voltage
Trigger modes
Edge
Positive, negative, or either slope on any channel or front-panel auxiliary input. Coupling includes DC, AC, HF reject, LF reject, and noise reject
Glitch
Trigger on or reject glitches of positive, negative, or either polarity. Programmable glitch width is 4 ns minimum to 8 s maximum
Runt
Trigger on a pulse that crosses one threshold but fails to cross a second threshold before crossing the first again
Width
Trigger on width of positive or negative pulse either within or outside selectable limits (4 ns to 8 s)
Timeout
Trigger on an event which remains high, low, or either, for a specified time period (4 ns to 8 s)
Transition
Trigger on pulse edge rates that are faster or slower than specified. Slope may be positive, negative, or either
Setup/Hold
Trigger on violations of both setup time and hold time between clock and data present on any two input channels
Pattern
Trigger when any logical pattern of signals goes false or stays true for specified period of time (4 ns to 1 s). Pattern (AND, OR, NAND, NOR) specified for all analog and digital input channels defined as High, Low, or Don’t Care
Parallel Bus
Trigger on specified data value on defined parallel bus
State
Any logical pattern of analog channels and digital channels (MSO models) clocked by edge on another channel. Trigger on rising or falling clock edge
Video
Trigger on all lines, specific line number, odd, even, or all fields on NTSC, PAL, SECAM, and HDTV 480p/60, 576p/50, 875i/60, 720p/30, 720p/50, 720p/60, 1080/24sF, 1080i/50, 1080p/25, 1080i/60, 1080p/24, 1080p/25, 1080p/50, 1080p/60, Bi-level, Tri-level
Trigger Sequences
Main, Delayed by Time, Delayed by Events. All sequences can include separate horizontal delay after the trigger event to position the acquisition window in time
A/B Sequence Event Trigger Types
Edge
Trigger Delay by Time
4 ns to 8 s
Trigger Delay by Events
1 to 4,000,000 events
Visual Trigger
Trigger on up to 8 user-specified areas, including rectangle, triangle, trapezoid, hexagon, and user-specified shapes on any of the analog channels
I2C (Optional)
Provided as part of Opt. SR-EMBD. Trigger on Start, Repeated Start, Stop, Missing ACK, Address (7 or 10 bit), Data, or Address and Data on I2C buses up to 10 Mb/s
SPI (Optional)
Provided as part of Opt. SR-EMBD. Trigger on Slave Select, Idle Time, or Data (1-16 words) on SPI buses up to 10 Mb/s
CAN (Optional)
Provided as part of Opt. SR-AUTO. Trigger on Start of Frame, Type of Frame (Data, Remote, Error, or Overload), Identifier, Data, Identifier and Data, EOF, Missing Ack, Bit Stuff Error, and CRC Error on CAN buses up to 1 Mb/s
LIN (Optional)
Provided as part of Opt. SR-AUTO. Trigger on Sync, Identifier, Data, Identifier and Data, Wakeup Frame, Sleep Frame, and Error on LIN buses up to 1 Mb/s
FlexRay (Optional)
Provided as part of Opt. SR-AUTO. Trigger on Indicator Bits (Normal, Payload, Null, Sync, Startup), Cycle Count, Header Fields (Indicator Bits, Identifier, Payload Length, Header CRC, and Cycle Count), Identifier, Data, Identifier and Data, End Of Frame, and Error on FlexRay buses up to 10 Mb/s
MIL-STD-1553 (Optional)
Provided as part of Opt. SR-AERO. Trigger on Sync, Command Word, Status Word, Data Word, Idle Time, and Error on MIL-STD-1553 buses up to 1 Mb/s
Ethernet (Optional)
Provided as part of Opt. SR-ENET. Trigger on Start of Packet, MAC Address, MAC Q-tag, MAC Length/Type, MAC Data, IP Header, TCP Header,
TCP/IPV4 Data, End of Packet, and FCS(CRC) Error on 10BASE-T and 100BASE-TX buses.
RS-232/422/485/UART (Optional)
Provided as part of Opt. SR-COMP. Trigger on Start Bit, End of Packet, Data, and Parity Error up to 10 Mb/s
USB 2.0 Low Speed: (Optional)
Provided as part of Opt. SR-USB.
Trigger on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error.
Token Packet Trigger – Any token type, SOF, OUT, IN, SETUP; Address can be specified for Any, OUT, IN, and SETUP token types. Address can be further specified to trigger on ≤, <, =, >, ≥, != a particular value, or inside or outside a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don’t Care digits.
Data Packet Trigger – Any data type, DATA0, DATA1; Data can be further specified to trigger on ≤, <, =, >, ≥, != a particular data value, or inside or outside a range.
Handshake Packet Trigger – Any handshake type, ACK, NAK, STALL.
Special Packet Trigger – Any special type, Reserved.
Error Trigger – PID Check, CRC5 or CRC16, Bit Stuffing.
USB 2.0 Full Speed: (Optional)
Provided as part of Opt. SR-USB.
Trigger on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error.
Token Packet Trigger – Any token type, SOF, OUT, IN, SETUP; Address can be specified for Any, OUT, IN, and SETUP token types. Address can be further specified to trigger on ≤, <, =, >, ≥, != a particular value, or inside or outside a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don’t Care digits.
Data Packet Trigger – Any data type, DATA0, DATA1; Data can be further specified to trigger on ≤, <, =, >, ≥, != a particular data value, or inside or outside a range.
Handshake Packet Trigger – Any handshake type, ACK, NAK, STALL.
Special Packet Trigger – Any special type, PRE, Reserved.
Error Trigger – PID Check, CRC5 or CRC16, Bit Stuffing.
USB 2.0 High Speed: (Optional)
Provided as part of Opt. SR-USB.
Trigger on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error.
Token Packet Trigger – Any token type, SOF, OUT, IN, SETUP; Address can be specified for Any, OUT, IN, and SETUP token types. Address can be further specified to trigger on ≤, <, =, >, ≥, != a particular value, or inside or outside a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don’t Care digits.
Data Packet Trigger – Any data type, DATA0, DATA1, DATA2, DATAM; Data can be further specified to trigger on ≤, <, =, >, ≥, != a particular data value, or inside or outside a range.
Handshake Packet Trigger – Any handshake type, ACK, NAK, STALL, NYET.
Special Packet Trigger – Any special type, ERR, SPLIT, PING, Reserved. SPLIT packet components that can be specified include:
Hub Address
Start/Complete – Don’t Care, Start (SSPLIT), Complete (CSPLIT) Port Address
Start and End bits – Don’t Care, Control/Bulk/Interrupt (Full-speed Device, Low-speed Device), Isochronous (Data is Middle, Data is End, Data is Start, Data is All)
Endpoint Type – Don’t Care, Control, Isochronous, Bulk, Interrupt
Error Trigger – PID Check, CRC5, CRC16, Any.
Note: USB 2.0 High-speed triggering, decoding, and search only available on 1 GHz and 2 GHz models.
Acquisition system
Acquisition modes
Sample
Acquire sampled values
Peak detect
Captures narrow glitches as narrow as 100 ps (2 GHz and 1 GHz models) or 200 ps (500 MHz and 350 MHz models) at all real-time sampling rates
Averaging
From 2 to 10,000 waveforms included in average
Envelope
Min-Max envelope reflecting Peak Detect data over multiple acquisitions
Hi-Res
Real-time boxcar averaging reduces random noise and increases resolution
Roll mode
Scrolls sequential waveform points across the display in a right-to-left rolling motion at sweep speeds slower than 50 ms/div. Up to 20 MS/s with a maximum record length of 10 M
FastAcq®
FastAcq optimizes the instrument for analysis of dynamic signals and capture of infrequent events
Maximum FastAcq waveform capture rate
>250,000 wfms/s on all 4 channels simultaneously
Waveform database
Accumulate waveform database providing three-dimensional array of amplitude, time, and counts
FastFrame™
Acquisition memory divided into segments; maximum trigger rate >310,000 waveforms per second. Time of arrival recorded with each event. Frame finder tool helps to visually identify transients
Automated Search and Mark
Automatically mark events and document waveforms. Search positive/negative slopes or both, glitches, runts, pulse widths, transition rate, setup and hold, timeout, windows, or find any logic or state pattern, up to 8 different event types on any of the 4 analog channels. Search DDR Read or Write bursts with Opt. DDRA. Event table summarizes all found events. All events are time stamped in reference to trigger position. Stop acquisitions when an event is found
Waveform analysis
Waveform measurements
Cursors
Waveform and Screen
Automatic measurements
53, of which 8 can be displayed on-screen at any one time. Measurements include: Period, Frequency, Delay, Rise Time, Fall Time, Positive Duty Cycle, Negative Duty Cycle, Positive Width, Negative Width, Burst Width, Phase, Positive Overshoot, Negative Overshoot, Peak-to-Peak, Amplitude, High, Low, Maximum, Minimum, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area
Eye-pattern measurements
Extinction Ratio (absolute, %, dB), Eye Height, Eye Width, Eye Top, Eye Base, Crossing %, Jitter (p-p, RMS, 6sigma), Noise (p-p, RMS), Signal/Noise Ratio, Cycle Distortion, Q-Factor
Measurement statistics
Mean, Minimum, Maximum, Standard Deviation
Reference levels
User-definable reference levels for automatic measurements can be specified in either percent or units
Gating
Isolate the specific occurrence within an acquisition to take measurements on, using either screen or waveform cursors
Waveform histogram
A waveform histogram provides an array of data values representing the total number of hits inside a user-defined region of the display. A waveform histogram is both a visual graph of the hit distribution and a numeric array of values that can be measured. Sources – Channel 1, Channel 2, Channel 3, Channel 4, Ref 1, Ref 2, Ref 3, Ref 4, Math 1, Math 2, Math 3, Math 4
Types – Vertical, Horizontal
Waveform histogram measurements
Waveform Count, Hits in Box, Peak Hits, Median, Maximum, Minimum, Peak-to-Peak, Mean (μ), Standard Deviation (sigma), μ +1sigma, μ +2sigma, μ +3sigma
Waveform processing/math
Arithmetic
Add, Subtract, Multiply, Divide waveforms and scalars
Algebraic expressions
Define extensive algebraic expressions including waveforms, scalars, user-adjustable variables, and results of parametric measurements. Perform math on math using complex equations. e.g. (Integral (CH1 – Mean(CH1)) × 1.414 × VAR1)
Math functions
Average, Invert, Integrate, Differentiate, Square Root, Exponential, Log10, Log e, Abs, Ceiling, Floor, Min, Max, Sin, Cos, Tan, ASin, ACos, ATan, Sinh, Cosh, Tanh
Relational
Boolean result of comparison >, <, ≥, ≤, ==, !=
Frequency domain functions (FFT)
Spectral Magnitude and Phase, Real and Imaginary Spectra
FFT vertical units
Magnitude: Linear, dB, dBm
Phase: Degrees, radians, group delay
FFT window functions
Rectangular, Hamming, Hanning, Kaiser-Bessel, Blackman-Harris, Gaussian, Flattop2, Tek Exponential
Waveform definition
As an arbitrary math expression
Filtering functions
User-definable filters. Users specify a filter containing the coefficients of the filter. Filter files provided
Custom math functions
Custom MATLAB and .NET plug-ins can be included in the math waveform definition
Mask function
A function that generates a waveform database pixmap from a sample waveform. Sample count can be defined
Software
IVI driver
Provides a standard instrument programming interface for common applications such as LabVIEW, LabWindows/CVI, Microsoft .NET and MATLAB. IVI-COM standard
LXI Class C web interface
Connect to the MSO/DPO5000B Series through a standard Web browser by simply entering the oscilloscope’s IP address in the address bar of the browser. The web interface enables viewing of instrument status and configuration, as well as status and modification of network settings. All web interaction conforms to LXI Class C specification
Display system
Display type
10.4 in. (264 mm) liquid-crystal active-matrix color display with touch screen
Display resolution
1024 horizontal × 768 vertical pixels (XGA)
Waveform styles
Vectors, dots, variable persistence, infinite persistence
Color palettes
Normal, green, gray, temperature, spectral, and user defined
Display format
YT, XY
Computer system
Operating system
Microsoft Windows 10 Enterprise IoT Edition
CPU
Intel i5-4400E 2.7 GHz processor
PC system memory
≥4 GB
Solid state disk drive
Removable solid state disk drive, 512 GB
Mouse
Optical wheel mouse, USB interface
Keyboard
Order 119-7083-xx for small keyboard; USB interface and hub

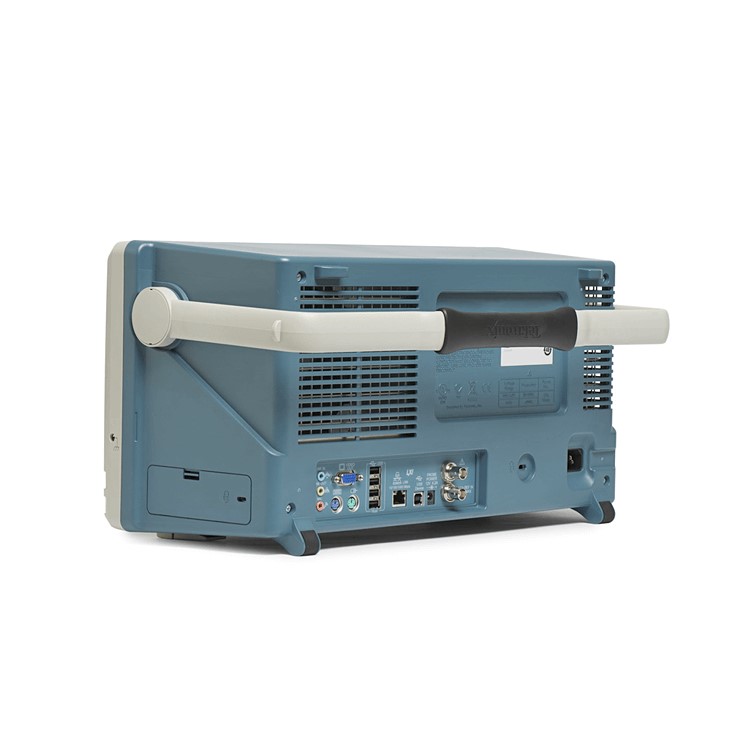

Input output ports
USB 2.0 High-speed host ports
Supports USB mass storage devices, printers, keyboard, and mouse. Two ports on front and four ports on rear of instrument. Can be disabled individually
USB 1.1 Full-speed device port
Rear-panel connector allows for communication/control of oscilloscope through USBTMC or GPIB (with a TEK-USB-488 adapter)
LAN port
RJ-45 connector, supports 10/100/1000BASE-T
Video out port
DB-15 female connector, connect to show the oscilloscope display on an external monitor or projector. Support for extended desktop and clone mode
Audio ports
Miniature phono jacks
Keyboard port
PS/2 compatible
Mouse port
PS/2 compatible
Auxiliary input
Front-panel BNC connector. Input impedance 1 MΩ. Max input 300 VRMSwith peaks ≤ ±425 V
Auxiliary out (software switchable)
Trigger Out: A TTL compatible pulse when the oscilloscope triggers
Time Base Reference Out: A TTL compatible output of internal 10 MHz reference oscillator
External reference in
Time base system can phase lock to an external 10 MHz reference (10 MHz ±1%)
Probe compensator output
Front-panel pins
Amplitude: 2.5 V
Frequency: 1 kHz
LAN eXtensions for Instrumentation (LXI)
Class: LXI Class C
Version: 1.3
Optional TekVPI® external power supply
Required when total oscilloscope probe power usage exceeds 15 W.
Output Voltage
12 V
Output Current
5 A
Power Consumption
50 W
Power source
Power source voltage
100 to 240 V ±10%
Power source frequency
45 Hz to 66 Hz (85 to 264 V)
360 Hz to 440 Hz (100 to 132 V)
Power consumption
275 W maximum
Physical characteristics
Dimensions
Weight
Rackmount configuration
5U
Cooling clearance
Temperature
Operating
0 °C to +50 °C
Nonoperating
–20 °C to +60 °C
Humidity
Operating
8% to 90% relative humidity with a maximum wet-bulb temperature of 29 °C at or below +50 °C (upper limit de-rates to 20.6% relative humidity at +50 °C). Noncondensing
Nonoperating
5% to 98% relative humidity with a maximum wet-bulb temperature of 40 °C at or below +60 °C (upper limit de-rates to 29.8% relative humidity at +60 °C). Noncondensing
Altitude
Operating
3,000 m (9,843 ft.)
Nonoperating
9,144 m (30,000 ft.)
Regulatory
Electromagnetic compatibility
2004/108/EC
Certifications
UL61010-1; CSA61010-1, EN61010-1; IEC 61010-1
DPO5034B DPO5034B TEKTRONIX TEKTRONIX DPO5034B DPO5034B 텍트로닉스 텍트로닉스 DPO5034B DPO5034B 중고 중고 DPO5034B
[배송 정책]
저희는 고객 편의를 위해 다양한 배송 옵션을 제공합니다.
기본 배송 안내
- 배송 지역 | 대한민국 전지역
- 배송비 | 4,000원 (100,000원 이상 결제시 무료배송)
- 택배사 : 우체국택배
- 배송기간 | 주말 공휴일 제외 2~5일
- 일부 제품의 경우 본사 또는 파트너사에서 바로 출하되어 택배사가 변경될 수 있습니다.
- 배송은 택배사 사정으로 지연될 수 있으며 정확한 배송 일정은 주문 시점과 지역에 따라 달라질 수 있습니다.
추가 배송 옵션
- 고객 요청 시, 퀵서비스를 이용한 신속 배송이 가능합니다. 퀵서비스 이용 여부 및 비용은 영업팀과 사전 협의를 통해 결정됩니다.
- 고객 요청 시, 화물(경동화물)을 이용한 배송도 가능합니다.
배송 주의 사항
- 장비 발송 후 배송 과정에서 발생하는 문제(예: 배송 지연, 분실 등)에 대한 책임은 당사의 배송 파트너와 협의하여 신속히 해결해 드립니다.
- 수령 후에는 즉시 장비 상태를 확인하시고, 이상이 있을 경우 수령일로부터 24시간 이내에 저희에게 알려주시기 바랍니다.
[교환&환불 정책]
저희 플랫폼은 고가의 계측장비를 전문적으로 판매 및 렌탈하는 특성상 아래의 환불 정책을 적용합니다.
계약 체결 이후 환불 불가
- 구매 또는 렌탈 계약 체결 후에는 고객의 단순 변심이나 사용 의사 변경으로 인한 환불이 불가능합니다.
- 고객은 계약 체결 전에 모든 장비의 상태, 기능 및 조건을 충분히 확인해야 할 책임이 있습니다.
- 초기 불량으로 인한 고장은 환불 대상이오나, 고객의 부주의나 잘못된 사용으로 인한 고장의 경우에는 해당하지 않습니다.
예외 상황 및 책임 한정
- 고객이 장비를 수령하기 전에 주문을 취소한 경우, 렌탈료의 20%를 취소 수수료로 공제하고 나머지를 환불합니다.
- 고객은 장비 사용 중 발생하는 모든 손상, 분실, 또는 오작동에 대해 책임이 있으며, 이로 인해 환불이 제공되지 않습니다.
- 고객 귀책 사유로 인한 반품의 경우 왕복 택배비는 고객 부담입니다.
세상에서 가장 상큼한 B2B 중고렌탈 플랫폼 - 🍇포도크림🍦
Model DPO5034B
Maker Tektronix
Description Oscilloscope; Digital Phosphor, 350MHz, 5GS/s
Rental 문의요망
Stock 문의요망
Oscilloscope; Digital Phosphor, 350MHz, 5GS/s
SPECIFICATIONS
Vertical system analog channels
Input coupling
AC, DC
Input resistance
1 MΩ ±1%, 50 Ω ±1%
Input sensitivity range
1 MΩ: 1 mV/div to 10 V/div
50 Ω: 1 mV/div to 1 V/div
Vertical resolution
8 bits (>11 bits with Hi Res)
Maximum input voltage, 1 MΩ
300 VRMSCAT II, with peaks ≤ ±425 V
For <100 mV/div derate at 20 dB/decade above 100 kHz to 30 VRMSat 1 MHz, 10 dB/decade above 1 MHz
For ≥100 mV/div derate at 20 dB/decade above 3 MHz to 30 VRMSat 30 MHz, 10 dB/decade above 30 MHz
Maximum input voltage, 50 Ω
5 VRMS, with peaks ≤ ±20 V
Position range
±5 divisions
Delay between any Two Channels (Typical)
≤100 ps (50 Ω, DC coupling and equal V/div at or above 10 mV/div)
Offset range
1 mV/div – 50 mV/div
1 MΩ: ±1 V
50 Ω: ±1 V
50.5 mV/div – 99.5 mV/div
1 MΩ: ±0.5 V
50 Ω: ±0.5 V
100 mV/div – 500 mV/div
1 MΩ: ±10 V
50 Ω: ±10 V
505 mV/div – 995 mV/div
1 MΩ: ±5 V
50 Ω: ±5 V
1 V/div – 5 V/div
1 MΩ: ±100 V
50 Ω: ±5 V
5.05 V/div – 10 V/div
1 MΩ: ±50 V
50 Ω: NA
Offset Accuracy
±(0.005 × |offset – position| + DC Balance)
Note: Both position and constant offset term must be converted to volts by multiplying by the appropriate volts/div term
Channel-to-channel isolation (Any two channels at equal vertical scale settings) (typical)
≥100:1 at ≤100 MHz and ≥30:1 at >100 MHz up to the rated BW
Vertical system digital channels
Input Channels
16 Digital (D15 – D0)
Thresholds
Per-channel Thresholds
Threshold Selections
TTL, ECL, User
User-defined Threshold Range
±40 V
Threshold Accuracy
±(100 mV + 3% of threshold setting)
Maximum Input Voltage
±42 Vpeak
Input Dynamic Range
30 Vp-p≤200 MHz
10 Vp-p>200 MHz
Minimum Voltage Swing
400 mV
Input Impedance
100 kΩ
Probe Loading
3 pF
Vertical Resolution
1 bit
Horizontal system analog channels
Maximum Duration at Highest Real-Time Sample Rate
25 ms
Time Base Range
12.5 ps/div to 8,000,000 s/div
Time resolution (in ET/IT mode)
2.5 ps/div
Time base delay time range
–10 divisions to 1000 s
Channel-to-channel deskew range
±75 ns
Time base accuracy
±5 ppm over any ≥1 ms interval
Horizontal system digital channels
Maximum Sample Rate (Main)
500 MS/s (2 ns resolution)
Maximum record length (main)
25 M Standard
Up to 40 M with Record Length options
Maximum sample rate (MagniVu)
16.5 GS/s (60.6 ps resolution)
Maximum record length (MagniVu)
10k points centered around the trigger
Minimum detectable pulse width
1 ns
Channel-to-channel skew (typical)
200 ps
Maximum input toggle rate
500 MHz at minimum input swing; higher toggle rates can be achieved at higher amplitudes
Trigger system
Main trigger modes
Auto, Normal, and Single
Trigger coupling
DC, AC, HF Rej (attenuates >50 kHz), LF Rej (attenuates <50 kHz), Noise Reject (reduces sensitivity)
Trigger holdoff range
250 ns to 8 s
Enhanced triggering
User-selectable; corrects the difference in timing between the trigger path and the acquired data (not available in FastAcq)
Trigger jitter
≤100 fsRMSusing Enhanced Trigger
≤10 psRMSwithout Enhanced Trigger and in Fast Acq mode
≤100 psRMSfor non-Edge-type trigger modes
Trigger sensitivity
Internal DC coupled
For 1 MΩ: 1 mV/div to 4.98 mV/div: 0.75 div from DC to 50MHz, increasing to 1.3 div at instrument bandwidth ≥5 mV/div: 0.40 div from DC to 50 MHz, increasing to 1 div at instrument bandwidth
For 50 Ω (MSO5204, DPO5204, MSO5104, DPO5104): 0.40 div from DC to 50 MHz, increasing to 1 div at instrument bandwidth
For 50 Ω (MSO5054, DPO5054, MSO5034, DPO5034): 1 mV/div to 4.98 mV/div: 0.75 div from DC to 50MHz, increasing to 1.3 div at instrument bandwidth ≥5 mV/div: 0.40 div from DC to 50 MHz, increasing to 1 div at instrument bandwidth
External (auxiliary input) 1 MΩ
200 mV from DC to 50 MHz, increasing to 500 mV at 250 MHz
Trigger level range
Any channel
±8 divisions from center of screen
External (auxiliary input)
±8 V
Line
Fixed at about 50% of line voltage
Trigger modes
Edge
Positive, negative, or either slope on any channel or front-panel auxiliary input. Coupling includes DC, AC, HF reject, LF reject, and noise reject
Glitch
Trigger on or reject glitches of positive, negative, or either polarity. Programmable glitch width is 4 ns minimum to 8 s maximum
Runt
Trigger on a pulse that crosses one threshold but fails to cross a second threshold before crossing the first again
Width
Trigger on width of positive or negative pulse either within or outside selectable limits (4 ns to 8 s)
Timeout
Trigger on an event which remains high, low, or either, for a specified time period (4 ns to 8 s)
Transition
Trigger on pulse edge rates that are faster or slower than specified. Slope may be positive, negative, or either
Setup/Hold
Trigger on violations of both setup time and hold time between clock and data present on any two input channels
Pattern
Trigger when any logical pattern of signals goes false or stays true for specified period of time (4 ns to 1 s). Pattern (AND, OR, NAND, NOR) specified for all analog and digital input channels defined as High, Low, or Don’t Care
Parallel Bus
Trigger on specified data value on defined parallel bus
State
Any logical pattern of analog channels and digital channels (MSO models) clocked by edge on another channel. Trigger on rising or falling clock edge
Video
Trigger on all lines, specific line number, odd, even, or all fields on NTSC, PAL, SECAM, and HDTV 480p/60, 576p/50, 875i/60, 720p/30, 720p/50, 720p/60, 1080/24sF, 1080i/50, 1080p/25, 1080i/60, 1080p/24, 1080p/25, 1080p/50, 1080p/60, Bi-level, Tri-level
Trigger Sequences
Main, Delayed by Time, Delayed by Events. All sequences can include separate horizontal delay after the trigger event to position the acquisition window in time
A/B Sequence Event Trigger Types
Edge
Trigger Delay by Time
4 ns to 8 s
Trigger Delay by Events
1 to 4,000,000 events
Visual Trigger
Trigger on up to 8 user-specified areas, including rectangle, triangle, trapezoid, hexagon, and user-specified shapes on any of the analog channels
I2C (Optional)
Provided as part of Opt. SR-EMBD. Trigger on Start, Repeated Start, Stop, Missing ACK, Address (7 or 10 bit), Data, or Address and Data on I2C buses up to 10 Mb/s
SPI (Optional)
Provided as part of Opt. SR-EMBD. Trigger on Slave Select, Idle Time, or Data (1-16 words) on SPI buses up to 10 Mb/s
CAN (Optional)
Provided as part of Opt. SR-AUTO. Trigger on Start of Frame, Type of Frame (Data, Remote, Error, or Overload), Identifier, Data, Identifier and Data, EOF, Missing Ack, Bit Stuff Error, and CRC Error on CAN buses up to 1 Mb/s
LIN (Optional)
Provided as part of Opt. SR-AUTO. Trigger on Sync, Identifier, Data, Identifier and Data, Wakeup Frame, Sleep Frame, and Error on LIN buses up to 1 Mb/s
FlexRay (Optional)
Provided as part of Opt. SR-AUTO. Trigger on Indicator Bits (Normal, Payload, Null, Sync, Startup), Cycle Count, Header Fields (Indicator Bits, Identifier, Payload Length, Header CRC, and Cycle Count), Identifier, Data, Identifier and Data, End Of Frame, and Error on FlexRay buses up to 10 Mb/s
MIL-STD-1553 (Optional)
Provided as part of Opt. SR-AERO. Trigger on Sync, Command Word, Status Word, Data Word, Idle Time, and Error on MIL-STD-1553 buses up to 1 Mb/s
Ethernet (Optional)
Provided as part of Opt. SR-ENET. Trigger on Start of Packet, MAC Address, MAC Q-tag, MAC Length/Type, MAC Data, IP Header, TCP Header,
TCP/IPV4 Data, End of Packet, and FCS(CRC) Error on 10BASE-T and 100BASE-TX buses.
RS-232/422/485/UART (Optional)
Provided as part of Opt. SR-COMP. Trigger on Start Bit, End of Packet, Data, and Parity Error up to 10 Mb/s
USB 2.0 Low Speed: (Optional)
Provided as part of Opt. SR-USB.
Trigger on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error.
Token Packet Trigger – Any token type, SOF, OUT, IN, SETUP; Address can be specified for Any, OUT, IN, and SETUP token types. Address can be further specified to trigger on ≤, <, =, >, ≥, != a particular value, or inside or outside a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don’t Care digits.
Data Packet Trigger – Any data type, DATA0, DATA1; Data can be further specified to trigger on ≤, <, =, >, ≥, != a particular data value, or inside or outside a range.
Handshake Packet Trigger – Any handshake type, ACK, NAK, STALL.
Special Packet Trigger – Any special type, Reserved.
Error Trigger – PID Check, CRC5 or CRC16, Bit Stuffing.
USB 2.0 Full Speed: (Optional)
Provided as part of Opt. SR-USB.
Trigger on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error.
Token Packet Trigger – Any token type, SOF, OUT, IN, SETUP; Address can be specified for Any, OUT, IN, and SETUP token types. Address can be further specified to trigger on ≤, <, =, >, ≥, != a particular value, or inside or outside a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don’t Care digits.
Data Packet Trigger – Any data type, DATA0, DATA1; Data can be further specified to trigger on ≤, <, =, >, ≥, != a particular data value, or inside or outside a range.
Handshake Packet Trigger – Any handshake type, ACK, NAK, STALL.
Special Packet Trigger – Any special type, PRE, Reserved.
Error Trigger – PID Check, CRC5 or CRC16, Bit Stuffing.
USB 2.0 High Speed: (Optional)
Provided as part of Opt. SR-USB.
Trigger on Sync, Reset, Suspend, Resume, End of Packet, Token (Address) Packet, Data Packet, Handshake Packet, Special Packet, Error.
Token Packet Trigger – Any token type, SOF, OUT, IN, SETUP; Address can be specified for Any, OUT, IN, and SETUP token types. Address can be further specified to trigger on ≤, <, =, >, ≥, != a particular value, or inside or outside a range. Frame number can be specified for SOF token using Binary, Hex, Unsigned Decimal, and Don’t Care digits.
Data Packet Trigger – Any data type, DATA0, DATA1, DATA2, DATAM; Data can be further specified to trigger on ≤, <, =, >, ≥, != a particular data value, or inside or outside a range.
Handshake Packet Trigger – Any handshake type, ACK, NAK, STALL, NYET.
Special Packet Trigger – Any special type, ERR, SPLIT, PING, Reserved. SPLIT packet components that can be specified include:
Hub Address
Start/Complete – Don’t Care, Start (SSPLIT), Complete (CSPLIT) Port Address
Start and End bits – Don’t Care, Control/Bulk/Interrupt (Full-speed Device, Low-speed Device), Isochronous (Data is Middle, Data is End, Data is Start, Data is All)
Endpoint Type – Don’t Care, Control, Isochronous, Bulk, Interrupt
Error Trigger – PID Check, CRC5, CRC16, Any.
Note: USB 2.0 High-speed triggering, decoding, and search only available on 1 GHz and 2 GHz models.
Acquisition system
Acquisition modes
Sample
Acquire sampled values
Peak detect
Captures narrow glitches as narrow as 100 ps (2 GHz and 1 GHz models) or 200 ps (500 MHz and 350 MHz models) at all real-time sampling rates
Averaging
From 2 to 10,000 waveforms included in average
Envelope
Min-Max envelope reflecting Peak Detect data over multiple acquisitions
Hi-Res
Real-time boxcar averaging reduces random noise and increases resolution
Roll mode
Scrolls sequential waveform points across the display in a right-to-left rolling motion at sweep speeds slower than 50 ms/div. Up to 20 MS/s with a maximum record length of 10 M
FastAcq®
FastAcq optimizes the instrument for analysis of dynamic signals and capture of infrequent events
Maximum FastAcq waveform capture rate
>250,000 wfms/s on all 4 channels simultaneously
Waveform database
Accumulate waveform database providing three-dimensional array of amplitude, time, and counts
FastFrame™
Acquisition memory divided into segments; maximum trigger rate >310,000 waveforms per second. Time of arrival recorded with each event. Frame finder tool helps to visually identify transients
Automated Search and Mark
Automatically mark events and document waveforms. Search positive/negative slopes or both, glitches, runts, pulse widths, transition rate, setup and hold, timeout, windows, or find any logic or state pattern, up to 8 different event types on any of the 4 analog channels. Search DDR Read or Write bursts with Opt. DDRA. Event table summarizes all found events. All events are time stamped in reference to trigger position. Stop acquisitions when an event is found
Waveform analysis
Waveform measurements
Cursors
Waveform and Screen
Automatic measurements
53, of which 8 can be displayed on-screen at any one time. Measurements include: Period, Frequency, Delay, Rise Time, Fall Time, Positive Duty Cycle, Negative Duty Cycle, Positive Width, Negative Width, Burst Width, Phase, Positive Overshoot, Negative Overshoot, Peak-to-Peak, Amplitude, High, Low, Maximum, Minimum, Mean, Cycle Mean, RMS, Cycle RMS, Area, Cycle Area
Eye-pattern measurements
Extinction Ratio (absolute, %, dB), Eye Height, Eye Width, Eye Top, Eye Base, Crossing %, Jitter (p-p, RMS, 6sigma), Noise (p-p, RMS), Signal/Noise Ratio, Cycle Distortion, Q-Factor
Measurement statistics
Mean, Minimum, Maximum, Standard Deviation
Reference levels
User-definable reference levels for automatic measurements can be specified in either percent or units
Gating
Isolate the specific occurrence within an acquisition to take measurements on, using either screen or waveform cursors
Waveform histogram
A waveform histogram provides an array of data values representing the total number of hits inside a user-defined region of the display. A waveform histogram is both a visual graph of the hit distribution and a numeric array of values that can be measured. Sources – Channel 1, Channel 2, Channel 3, Channel 4, Ref 1, Ref 2, Ref 3, Ref 4, Math 1, Math 2, Math 3, Math 4
Types – Vertical, Horizontal
Waveform histogram measurements
Waveform Count, Hits in Box, Peak Hits, Median, Maximum, Minimum, Peak-to-Peak, Mean (μ), Standard Deviation (sigma), μ +1sigma, μ +2sigma, μ +3sigma
Waveform processing/math
Arithmetic
Add, Subtract, Multiply, Divide waveforms and scalars
Algebraic expressions
Define extensive algebraic expressions including waveforms, scalars, user-adjustable variables, and results of parametric measurements. Perform math on math using complex equations. e.g. (Integral (CH1 – Mean(CH1)) × 1.414 × VAR1)
Math functions
Average, Invert, Integrate, Differentiate, Square Root, Exponential, Log10, Log e, Abs, Ceiling, Floor, Min, Max, Sin, Cos, Tan, ASin, ACos, ATan, Sinh, Cosh, Tanh
Relational
Boolean result of comparison >, <, ≥, ≤, ==, !=
Frequency domain functions (FFT)
Spectral Magnitude and Phase, Real and Imaginary Spectra
FFT vertical units
Magnitude: Linear, dB, dBm
Phase: Degrees, radians, group delay
FFT window functions
Rectangular, Hamming, Hanning, Kaiser-Bessel, Blackman-Harris, Gaussian, Flattop2, Tek Exponential
Waveform definition
As an arbitrary math expression
Filtering functions
User-definable filters. Users specify a filter containing the coefficients of the filter. Filter files provided
Custom math functions
Custom MATLAB and .NET plug-ins can be included in the math waveform definition
Mask function
A function that generates a waveform database pixmap from a sample waveform. Sample count can be defined
Software
IVI driver
Provides a standard instrument programming interface for common applications such as LabVIEW, LabWindows/CVI, Microsoft .NET and MATLAB. IVI-COM standard
LXI Class C web interface
Connect to the MSO/DPO5000B Series through a standard Web browser by simply entering the oscilloscope’s IP address in the address bar of the browser. The web interface enables viewing of instrument status and configuration, as well as status and modification of network settings. All web interaction conforms to LXI Class C specification
Display system
Display type
10.4 in. (264 mm) liquid-crystal active-matrix color display with touch screen
Display resolution
1024 horizontal × 768 vertical pixels (XGA)
Waveform styles
Vectors, dots, variable persistence, infinite persistence
Color palettes
Normal, green, gray, temperature, spectral, and user defined
Display format
YT, XY
Computer system
Operating system
Microsoft Windows 10 Enterprise IoT Edition
CPU
Intel i5-4400E 2.7 GHz processor
PC system memory
≥4 GB
Solid state disk drive
Removable solid state disk drive, 512 GB
Mouse
Optical wheel mouse, USB interface
Keyboard
Order 119-7083-xx for small keyboard; USB interface and hub
Input output ports
USB 2.0 High-speed host ports
Supports USB mass storage devices, printers, keyboard, and mouse. Two ports on front and four ports on rear of instrument. Can be disabled individually
USB 1.1 Full-speed device port
Rear-panel connector allows for communication/control of oscilloscope through USBTMC or GPIB (with a TEK-USB-488 adapter)
LAN port
RJ-45 connector, supports 10/100/1000BASE-T
Video out port
DB-15 female connector, connect to show the oscilloscope display on an external monitor or projector. Support for extended desktop and clone mode
Audio ports
Miniature phono jacks
Keyboard port
PS/2 compatible
Mouse port
PS/2 compatible
Auxiliary input
Front-panel BNC connector. Input impedance 1 MΩ. Max input 300 VRMSwith peaks ≤ ±425 V
Auxiliary out (software switchable)
Trigger Out: A TTL compatible pulse when the oscilloscope triggers
Time Base Reference Out: A TTL compatible output of internal 10 MHz reference oscillator
External reference in
Time base system can phase lock to an external 10 MHz reference (10 MHz ±1%)
Probe compensator output
Front-panel pins
Amplitude: 2.5 V
Frequency: 1 kHz
LAN eXtensions for Instrumentation (LXI)
Class: LXI Class C
Version: 1.3
Optional TekVPI® external power supply
Required when total oscilloscope probe power usage exceeds 15 W.
Output Voltage
12 V
Output Current
5 A
Power Consumption
50 W
Power source
Power source voltage
100 to 240 V ±10%
Power source frequency
45 Hz to 66 Hz (85 to 264 V)
360 Hz to 440 Hz (100 to 132 V)
Power consumption
275 W maximum
Physical characteristics
Dimensions
Weight
Rackmount configuration
5U
Cooling clearance
Temperature
Operating
0 °C to +50 °C
Nonoperating
–20 °C to +60 °C
Humidity
Operating
8% to 90% relative humidity with a maximum wet-bulb temperature of 29 °C at or below +50 °C (upper limit de-rates to 20.6% relative humidity at +50 °C). Noncondensing
Nonoperating
5% to 98% relative humidity with a maximum wet-bulb temperature of 40 °C at or below +60 °C (upper limit de-rates to 29.8% relative humidity at +60 °C). Noncondensing
Altitude
Operating
3,000 m (9,843 ft.)
Nonoperating
9,144 m (30,000 ft.)
Regulatory
Electromagnetic compatibility
2004/108/EC
Certifications
UL61010-1; CSA61010-1, EN61010-1; IEC 61010-1
DPO5034B DPO5034B TEKTRONIX TEKTRONIX DPO5034B DPO5034B 텍트로닉스 텍트로닉스 DPO5034B DPO5034B 중고 중고 DPO5034B
[배송 정책]
저희는 고객 편의를 위해 다양한 배송 옵션을 제공합니다.
기본 배송 안내
- 배송 지역 | 대한민국 전지역
- 배송비 | 4,000원 (100,000원 이상 결제시 무료배송)
- 택배사 : 우체국택배
- 배송기간 | 주말 공휴일 제외 2~5일
- 일부 제품의 경우 본사 또는 파트너사에서 바로 출하되어 택배사가 변경될 수 있습니다.
- 배송은 택배사 사정으로 지연될 수 있으며 정확한 배송 일정은 주문 시점과 지역에 따라 달라질 수 있습니다.
추가 배송 옵션
- 고객 요청 시, 퀵서비스를 이용한 신속 배송이 가능합니다. 퀵서비스 이용 여부 및 비용은 영업팀과 사전 협의를 통해 결정됩니다.
- 고객 요청 시, 화물(경동화물)을 이용한 배송도 가능합니다.
배송 주의 사항
- 장비 발송 후 배송 과정에서 발생하는 문제(예: 배송 지연, 분실 등)에 대한 책임은 당사의 배송 파트너와 협의하여 신속히 해결해 드립니다.
- 수령 후에는 즉시 장비 상태를 확인하시고, 이상이 있을 경우 수령일로부터 24시간 이내에 저희에게 알려주시기 바랍니다.
[교환&환불 정책]
저희 플랫폼은 고가의 계측장비를 전문적으로 판매 및 렌탈하는 특성상 아래의 환불 정책을 적용합니다.
계약 체결 이후 환불 불가
- 구매 또는 렌탈 계약 체결 후에는 고객의 단순 변심이나 사용 의사 변경으로 인한 환불이 불가능합니다.
- 고객은 계약 체결 전에 모든 장비의 상태, 기능 및 조건을 충분히 확인해야 할 책임이 있습니다.
- 초기 불량으로 인한 고장은 환불 대상이오나, 고객의 부주의나 잘못된 사용으로 인한 고장의 경우에는 해당하지 않습니다.
예외 상황 및 책임 한정
- 고객이 장비를 수령하기 전에 주문을 취소한 경우, 렌탈료의 20%를 취소 수수료로 공제하고 나머지를 환불합니다.
- 고객은 장비 사용 중 발생하는 모든 손상, 분실, 또는 오작동에 대해 책임이 있으며, 이로 인해 환불이 제공되지 않습니다.
- 고객 귀책 사유로 인한 반품의 경우 왕복 택배비는 고객 부담입니다.
세상에서 가장 상큼한 B2B 중고렌탈 플랫폼 - 🍇포도크림🍦
