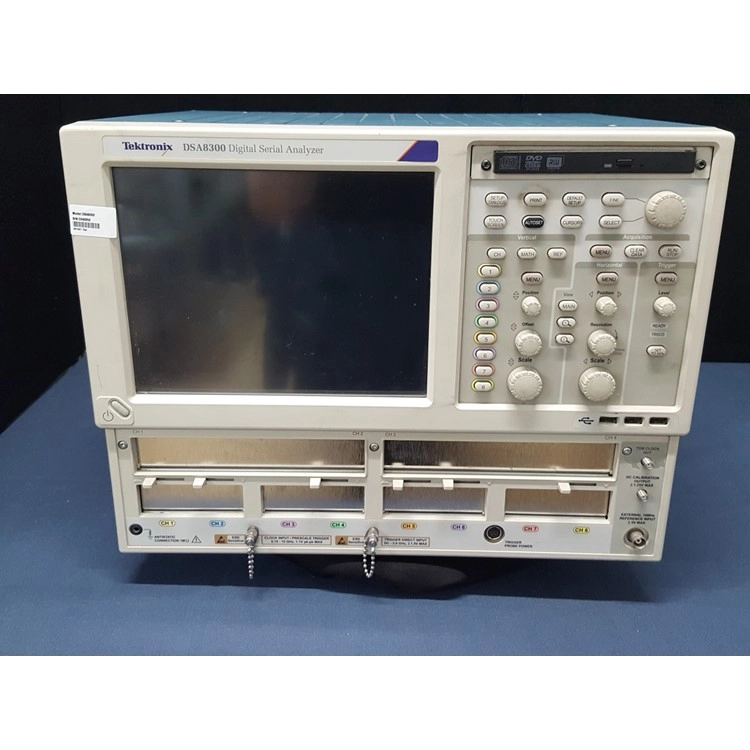

Model DSA8300
Maker Tektronix
Description Digital Serial Analyzer Sampling Oscilloscope
Rental 문의요망
Stock 문의요망
The DSA8300 is a state-of-the-art Equivalent Time Sampling Oscilloscope that provides the highest fidelity measurement and analysis capabilities for Communications Signal Analysis, Serial Data Network Analysis, and Serial Data Link Analysis applications.
Notice to EU customers
This product is not updated to comply with the RoHS 2 Directive 2011/65/EU and will not be shipped to the EU. Customers may be able to purchase products from inventory that were placed on the EU market prior to July 22, 2017 until supplies are depleted. Tektronix is committed to helping you with your solution needs. Please contact your local sales representative for further assistance or to determine if alternative product(s) are available. Tektronix will continue service to the end of worldwide support life.
Key performance specifications
- Low time base jitter:
- 425 fs typical on up to 8 simultaneously acquired channels
- <100 fs on up to 6 channels with 82A04B phase reference module
- Industry’s highest vertical resolution – 16 bit A/D
- Electrical resolution: <20 µV LSB (for 1 v full range)
- Optical resolution from <20 nW for the 80C07B (1 mW full range) to <0.6 µW for the 80C10C (30 mW full range)
- Optical bandwidths to >80 GHz
- Electrical bandwidths to >70 GHz

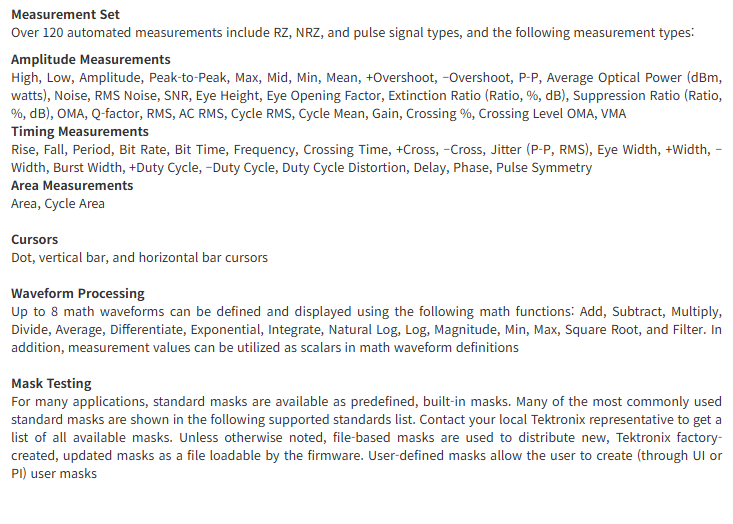

- Over 120 automated measurements for NRZ, RZ, and pulse signal types
- Automated mask testing with over 80 industry-standard masks
- Complex jitter/noise/BER/SER analysis (80SJNB), support for complex measurements TDECQ 1, SNDR 2 (applications)
1Transmitter and Dispersion Eye Closure Quaternary for PAM4.
2Signal-to-Noise-and-Distortion Ratio.
Key features
A wide variety of optical, electrical, and accessory modules support your specific testing requirements.
Optical modules
Optical modules that support optical data rates from 155 Mb/s to 10 Gb/s to 40 Gb/s to 100 Gb/s to PAM4 for 50G/100G/200G/400G
Optical reference receivers (ORR) 1 support specified requirements for standards-mandated compliance testing
High optical sensitivity, low noise, and wide dynamic range of the optical sampling modules allows accurate testing and characterization of short-reach to long-haul optical communications standards
Fully calibrated clock recovery solutions – no need to manually calibrate for data pick-off losses
Calibrated extinction ratio measurements and variable correction ER measurement ensure accuracy and repeatability
Electrical modules
Very low-noise electrical samplers (280 μV at 20 GHz, 450 μV at 60 GHz, typical)
Selectable bandwidths 2 allow the user to trade-off sampler bandwidth and noise for optimal data acquisition performance
Remote samplers or compact sampling extender module cables minimize signal degradation by allowing the sampler to be located in close proximity to the device under test
High-performance integrated TDR (10 ps typical step rise time) supports exceptional impedance discontinuity characterization and high dynamic range for S-parameter measurements to 50 GHz
Analysis
Jitter, noise, and BER analysis of high-speed PAM4 and PAM2 NRZ serial data rates from <1 GBd to 60 GBd provides insight into precise causes of eye closure
Analysis of PAM4 signals with comprehensive jitter, noise and BER analysis for each individual PAM eye, and a set of global measurements that assess the overall PAM4 signal attributes
100G-SR4/Transmitter and Dispersion Eye Closure (TDEC) automation provides turn-key testing and debug of TX Optical properties key to the SR4 Short Reach Ethernet
80STDEC streamlines high performance Transmitter and Dispersion Eye Closure (TDEC) measurement making it ideal for manufacturing and conformance validation applications
Automated mask testing with over 80 industry-standard masks. New masks can be imported into the DSA8300 to support new emerging standards. Users can define their own masks for automated mask testing
Jitter, noise, BER, mask testing, and Serial Data Link Analysis (SDLA) are provided through the 80SJNB Essentials and Advanced Software Application Options
Advanced TDR analysis, S-parameter measurements, simulation model extraction, and serial link simulation capabilities are provided by the IConnect® Software Application options
400G-M4 Optical Manufacturing Analysis Software provides Optical Transmitter and Dispersion Eye Closure Quaternary (TDECQ) analysis
High test throughput
High sample acquisition rate up to 200 kS/s per channel
Efficient programmatic interface (IEEE-488, Ethernet, or local processor access) enables high test throughput
1Optical Reference Receiver (ORR) is a 4th-order Bessel-Thompson filter, with a frequency response and tolerances as defined by the standards. Tektronix optimizes the response for best nominal fit and highest quality mask test results.
2Refer to the 80E00 Electrical Sampling Modules datasheet for detailed descriptions of each available module.
Applications
- Design/Verification of telecom and datacom components and systems
- Manufacturing/testing for ITU/ANSI/IEEE/SONET/SDH compliance
- High-performance true-differential TDR measurements
- Impedance characterization and network analysis for serial data applications including S-parameters
- Advanced jitter, noise, BER and SDLA analysis
- Channel and eye diagram simulation and measurement-based modeling with IConnect.
Superior performance with extraordinary versatility
The DSA8300 Digital Serial Analyzer is the most versatile tool for developing and testing communications, computers, and consumer electronics which use multi-gigabit data transmission. It is used for optical and electrical transmitter characterization, as well as compliance verification for devices, modules, and systems used in these products.
In addition, the DSA8300 is well-suited for electrical signal path characterization, whether for packages, PCBs, or electrical cables. With exceptional bandwidth, signal fidelity, and the most extensible modular architecture, the DSA8300 provides the highest-performance TDR and interconnect analysis, most accurate analysis of signal impairments, and BER calculations for current and emerging serial data technology.

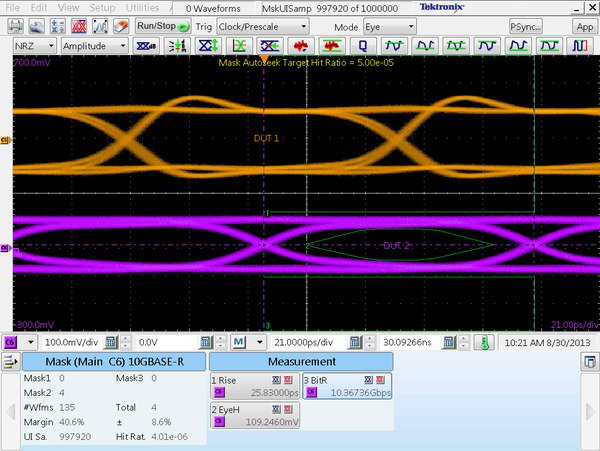

Optical eye diagram testing

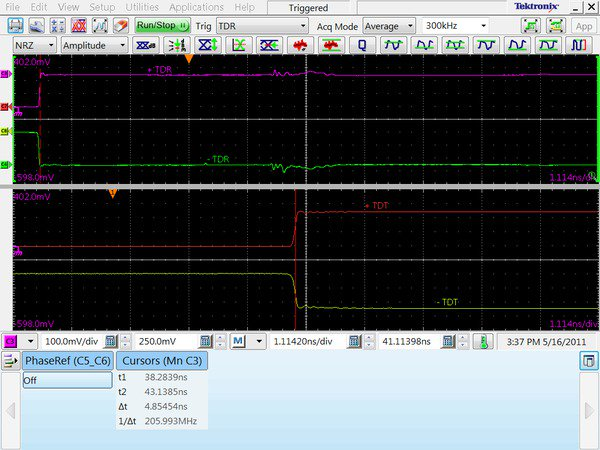

Passive interconnect test
Finally, with its exceptional signal fidelity and resolution, the DSA8300 is the gold standard for electrical and optical applications which require ultra-high bandwidths, very fine vertical resolution, low jitter, and/or exceptionally low noise.
The DSA8300 provides unmatched measurement system fidelity with the lowest native instrument jitter floor (425 fs RMS, typical for serial data signals at rates >1.25 Gb/s) that ensures the most accurate acquisition of up to 8 high-bandwidth signals simultaneously. You get additional analysis benefits from acquisition jitter below 100 fs RMS when using the 82A04B Phase Reference module.
The multiprocessor architecture, with dedicated per-slot digital signal processors (DSPs), provides fast waveform acquisition rates, reducing the test times necessary for reliable characterization and compliance verification.
The DSA8300’s versatile modular architecture supports a large and growing family of plug-ins enabling you to configure your measurement system with a wide variety of electrical, optical, and accessory modules that best suit your application now and in the future. With 6 module slots, the DSA8300 can simultaneously accommodate a Clock Recovery module, a precision Phase Reference module, and multiple acquisition modules (electrical or optical), so you can match system performance to your evolving needs. The ability to swap sampling modules without powering down the DSA8300 (available for scopes with firmware versions 6.1 and later) provides additional flexibility in configuring your DSA8300 to changing test needs.
In addition, specialized modules supporting features such as single-ended and differential electrical clock recovery, electrostatic protection for electrical samplers, and connectivity to the popular TekConnect®probing system brings you the performance of state-of-the-art Tektronix probes for high-impedance and differential probing. Low-impedance probes for 50 Ω probing and for TDR probing are also available.
The raw acquisition performance of the DSA8300 and its sampling modules and accessories is further augmented by the comprehensive measurement and analysis capabilities of the DSA8300 and its associated software applications.
See the Ordering information for a list of currently available software applications and modules.
Measurement and analysis tools for optical testing applications
The DSA8300 includes a wide variety of measurement and analysis tools which specifically address optical testing applications. In addition to the standard amplitude and timing parametric measurements (such as rise/fall times, amplitude, RMS jitter, RMS noise, frequency, period, and so on), the measurement suite for the DSA8300 includes measurements specifically tailored to measuring optical signals (average optical power, extinction ratio, eye height, eye width, optical modulation amplitude (OMA), and so on). For a complete list of measurements, see theMeasurementsection of this datasheet.
The DSA8300 also includes standard compliance testing masks for all of the common optical standards from 155 Mb/s to 100 Gb/s. The DSA8300 mask testing system includes the ability to automatically fit standard and user masks to data acquired into a waveform database. The mask test system can also automatically determine the mask margin based either on the total number of mask violations or the “hit ratio” of mask violation to the number of samples acquired in the mask test unit interval. Users can also create custom masks for automated mask testing. Histograms and cursor measurements are also available to analyze optical signals acquired by the DSA8300.
Test solutions
The DSA8300, with its highly configurable mainframe and a wide variety of modules, provide complete test solutions with superior system fidelity.
Optical modules
The Tektronix 80C00 family of optical sampling modules cover a range of wavelengths for both single- and multi-mode fibers. The various modules provide a range of features such as clock recovery, reference receiver filters, and a wide range of standards test solutions.
Refer to the Ordering information section for a list of currently available optical modules.
Refer to the 80C00 Optical Modules datasheet for detailed descriptions of each available module.
Electrical modules
The Tektronix 80E00 family of electrical sampling modules provide a wide variety of capabilities, allowing the user to configure a test solution specifically adapted to their application. A wide variety of bandwidth solutions is available along with other features such as Time Domain Reflectometry or S-parameter testing.
Refer to the Ordering information section for a list of currently available electrical modules.
Refer to the 80E00 Electrical Sampling Modules datasheet for detailed descriptions of each available module.
Utility modules
The Tektronix 80A00 and 82A00 families of modules provide additional capabilities such as phase reference and ESD protection.
Refer to the Ordering information section for a list of currently available utility type modules.
Refer the to the various utility module datasheets for detailed descriptions of each available module.
80A02 EOS ESD Isolation Module
82A04B Phase Reference Module
80A03 module extender
80B28G – a DSA8300 product bundle for 28 Gb/s applications
This bundle, when used with a DSA8300, provides all of the electrical sampling modules, accessories, and clock recovery capabilities needed to test applications at rates from 10 Gb/s to 28.6 Gb/s per lane. The bundle includes the following products:
1 ea. 80E09B: dual channel, 70 GHz Remote Electrical Sampling Module
1 ea. 82A04B: Phase Reference Module that supports sub-100 fs instrumentation jitter when used with the 80E09B
1 ea. CR286A with Option HS: 28.6 GHz clock recovery instrument that supports clock recovery at rates from 150 Mb/s to 28.6 Gb/s
1 ea. 80X01: 1-meter sampling module extender cable used to extend the phase reference module to connect directly to the clock recovery module
1 ea. 80A08 : accessory kit with all of the necessary cables, adapters, DC blocks and other accessories to configure a complete test solution
To extend this solution to test additional lanes in a multi-lane application, simply install additional 80E09B dual channel remote sampling modules.

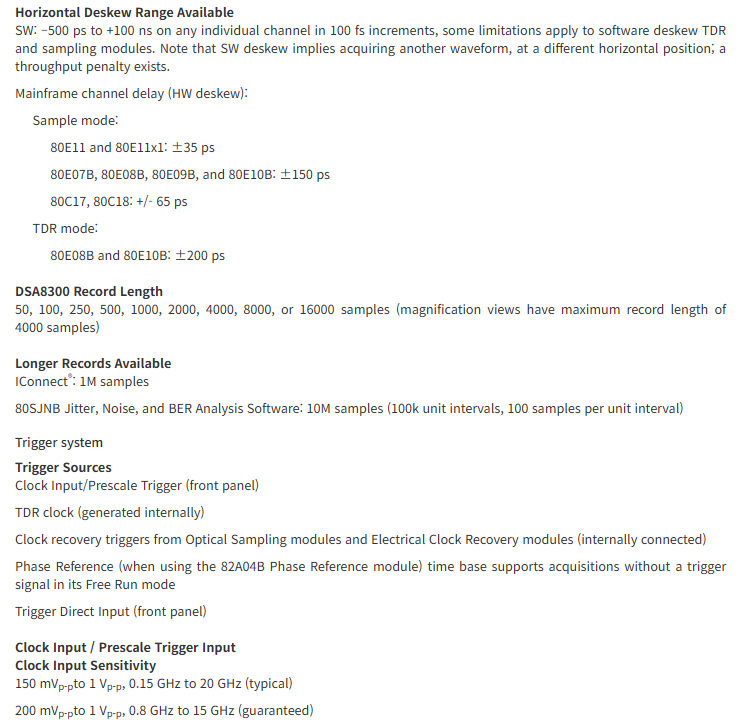

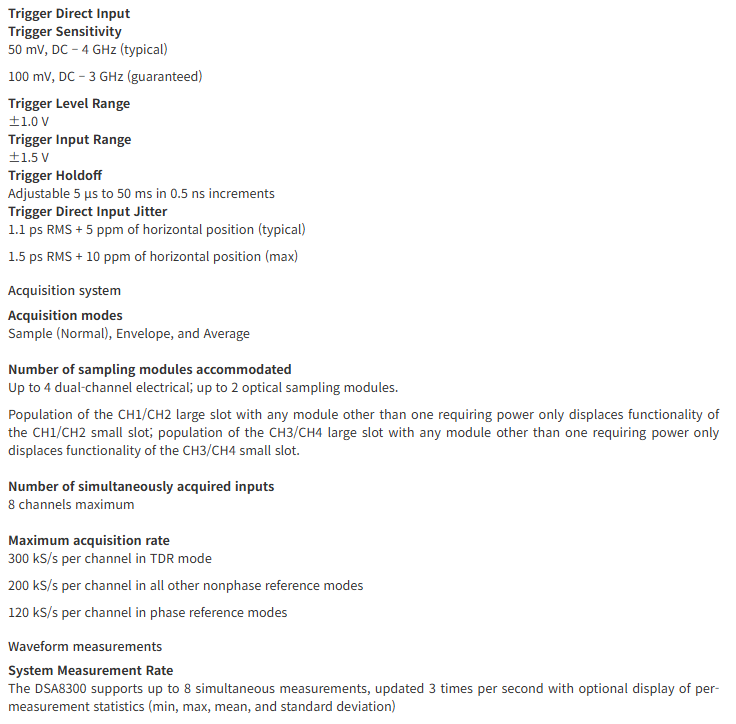

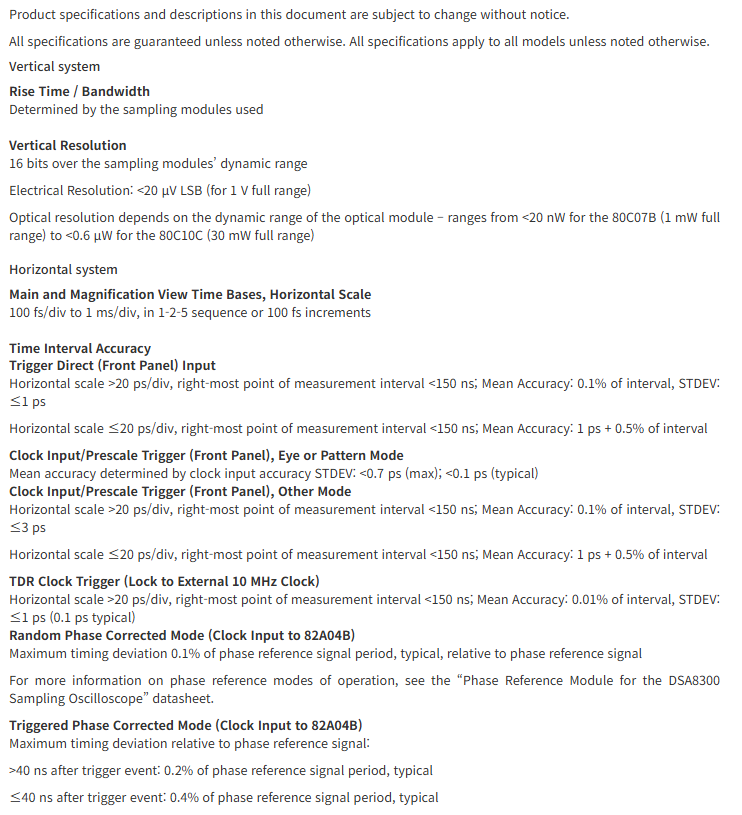

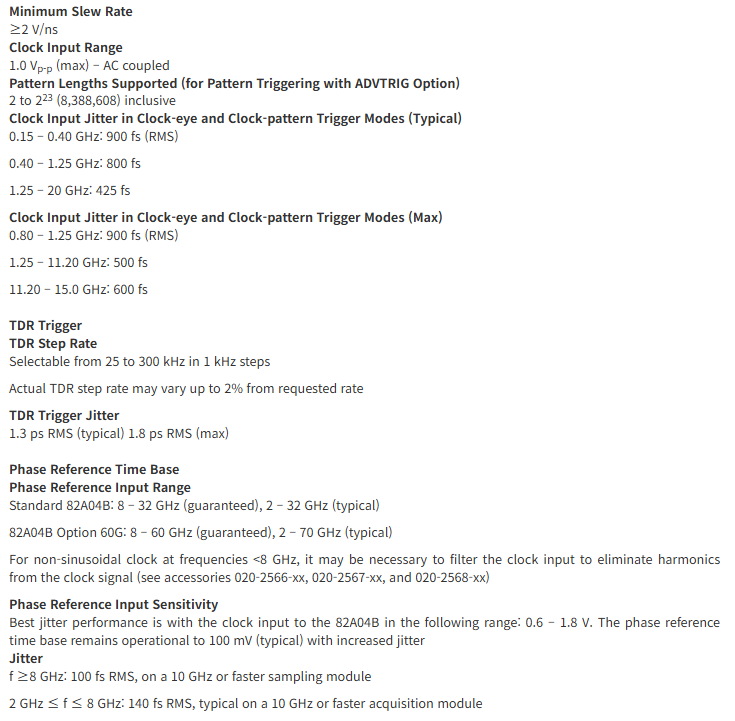

SPECIFICATIONS
