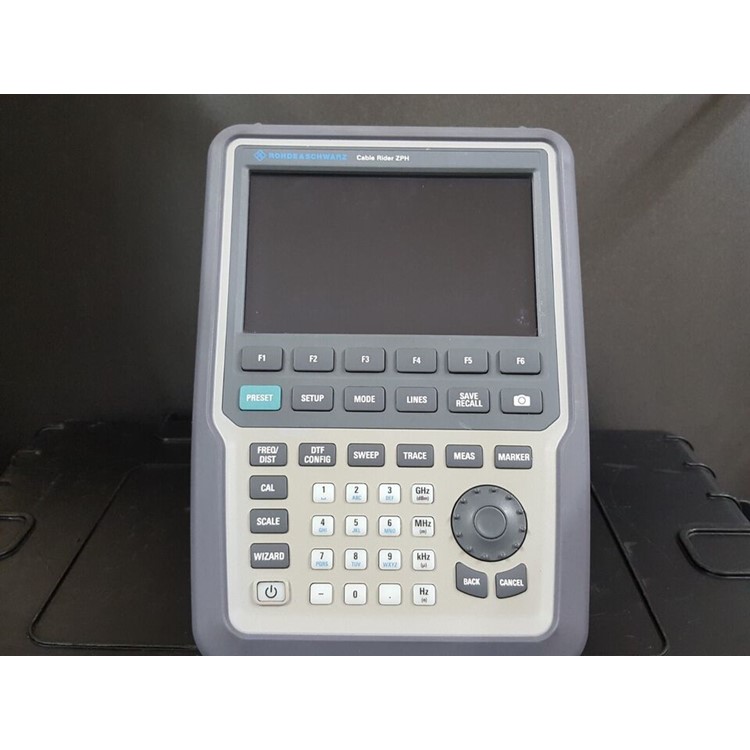

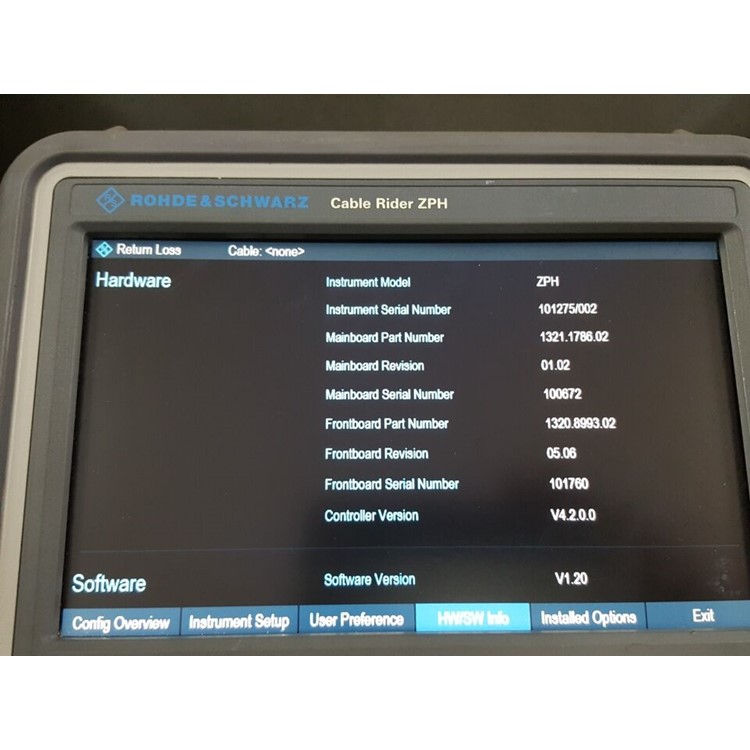

R&S ZPH 케이블 라이더

Name: R&S ZPH 케이블 라이더
Availability: InStock

가격문의(상세정보 참조)

Model ZPH

Maker R&S

Description Cable Rider

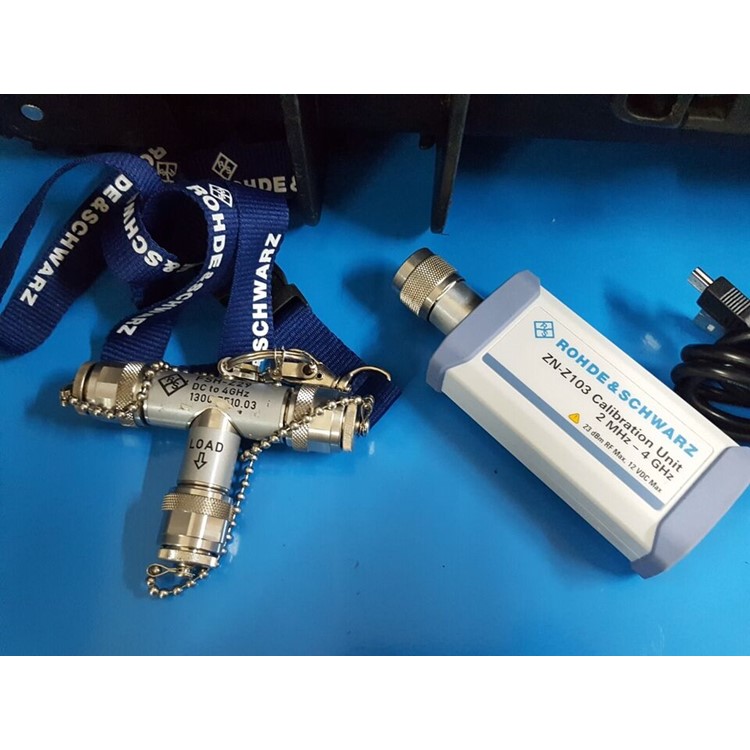

Option B4,FSH-Z29,FSH-Z320,HA-Z321,HA-Z322-02,ZN-Z103 (기타 옵션 문의)

Rental 문의요망

Stock 문의요망

배송

택배 · 기본 30,000원

100,000원 이상 구매 시 무료배송

Specification in brief
Frequency range	R&S®Cable Rider ZPH (1-port model .02)	2 MHz to 3 GHz
	with R&S®ZPH-B4 option	2 MHz to 4 GHz
	R&S®Cable Rider ZPH (2-port combi model .12)
	with R&S®ZPH-K1 option	5 kHz to 3 GHz
	with R&S®ZPH-B4 and R&S®ZPH-K1 options	5 kHz to 4 GHz
Frequency resolution		1 Hz
Spectrum measurement with combi model .12 only, with R&S®ZPH-K1 option
Spectral purity, SSB phase noise	f = 500 MHz, carrier offset 30 kHz	< –88 dBc (1 Hz), typ. –95 dBc (1 Hz)
	f = 500 MHz, carrier offset 100 kHz	< –98 dBc (1 Hz), typ. –105 dBc (1 Hz)
	f = 500 MHz, carrier offset 1 MHz	< –118 dBc (1 Hz), typ. –125 dBc (1 Hz)
Displayed average noise level (DANL)	0 dB RF attenuation, termination 50 Ω, RBW = 1 kHz, VBW = 10 Hz, sample detector, log scaling, normalized to 1 Hz
	frequency preamplifier = off
	1 MHz to 10 MHz	< –130 dBm, typ. –135 dBm
	10 MHz to 1 GHz	< –142 dBm, typ. –146 dBm
	1 GHz to 4 GHz	< –140 dBm, typ. –144 dBm
	frequency preamplifier = on
	1 MHz to 10 MHz	< –150 dBm, typ. –160 dBm
	10 MHz to 3 GHz	< –158 dBm, typ. –163 dBm
	3 GHz to 4 GHz	< –156 dBm, typ. –161 dBm

Maximum permissible spurious signal	measurement = reflection (S11)/one-port cable loss/distance-to-fault analysis	+17 dBm (nom.)
Data points	selectable	101 to 2501
Reflection measurement S11
Corrected directivity with R&S®ZN-Z103	2 MHz ≤ f ≤ 4 GHz (with R&S®ZPH-B4 option installed)	> 42 dB (nom.)
Measurement speed		0.3 ms/point
Result formats		magnitude, VSWR, magnitude and distance-to-fault, VSWR and distance-to-fault
1-port cable loss measurement
Result format		magnitude
Range	selectable	1/2/5/10/20/50/100/120/150 dB
Distance-to-fault analysis
Result formats		return loss (dB), VSWR
Fault resolution		(1.5 m × 108 m × velocity factor/span)
Maximum cable length	depending on cable loss	1500 m (nom.)
Maximum rated input levels
DC voltage		50 V
CW RF power	model .02: port 1 (power meter input)	30 dBm
	model .12: port 1 (RF input)	20 dBm
	port 2 (reflectometer input)	23 dBm
General data
Display resolution	WVGA	800 × 480 pixel
Battery (R&S®HA-Z306 option)	capacity	72 Wh
	voltage	11.25 V (nom.)
	operating time with new, fully charged battery	Up to 9 hrs
Dimension	W × H × D	202 mm × 294 mm × 76 mm (8.0 in × 11.6 in × 3 in)
Weight		2.5 kg (5.5 lb)

Specification in brief
Frequency range	R&S®Cable Rider ZPH (1-port model .02)	2 MHz to 3 GHz
	with R&S®ZPH-B4 option	2 MHz to 4 GHz
	R&S®Cable Rider ZPH (2-port combi model .12)
	with R&S®ZPH-K1 option	5 kHz to 3 GHz
	with R&S®ZPH-B4 and R&S®ZPH-K1 options	5 kHz to 4 GHz
Frequency resolution		1 Hz
Spectrum measurement with combi model .12 only, with R&S®ZPH-K1 option
Spectral purity, SSB phase noise	f = 500 MHz, carrier offset 30 kHz	< –88 dBc (1 Hz), typ. –95 dBc (1 Hz)
	f = 500 MHz, carrier offset 100 kHz	< –98 dBc (1 Hz), typ. –105 dBc (1 Hz)
	f = 500 MHz, carrier offset 1 MHz	< –118 dBc (1 Hz), typ. –125 dBc (1 Hz)
Displayed average noise level (DANL)	0 dB RF attenuation, termination 50 Ω, RBW = 1 kHz, VBW = 10 Hz, sample detector, log scaling, normalized to 1 Hz
	frequency preamplifier = off
	1 MHz to 10 MHz	< –130 dBm, typ. –135 dBm
	10 MHz to 1 GHz	< –142 dBm, typ. –146 dBm
	1 GHz to 4 GHz	< –140 dBm, typ. –144 dBm
	frequency preamplifier = on
	1 MHz to 10 MHz	< –150 dBm, typ. –160 dBm
	10 MHz to 3 GHz	< –158 dBm, typ. –163 dBm
	3 GHz to 4 GHz	< –156 dBm, typ. –161 dBm

Maximum permissible spurious signal	measurement = reflection (S11)/one-port cable loss/distance-to-fault analysis	+17 dBm (nom.)
Data points	selectable	101 to 2501
Reflection measurement S11
Corrected directivity with R&S®ZN-Z103	2 MHz ≤ f ≤ 4 GHz (with R&S®ZPH-B4 option installed)	> 42 dB (nom.)
Measurement speed		0.3 ms/point
Result formats		magnitude, VSWR, magnitude and distance-to-fault, VSWR and distance-to-fault
1-port cable loss measurement
Result format		magnitude
Range	selectable	1/2/5/10/20/50/100/120/150 dB
Distance-to-fault analysis
Result formats		return loss (dB), VSWR
Fault resolution		(1.5 m × 108 m × velocity factor/span)
Maximum cable length	depending on cable loss	1500 m (nom.)
Maximum rated input levels
DC voltage		50 V
CW RF power	model .02: port 1 (power meter input)	30 dBm
	model .12: port 1 (RF input)	20 dBm
	port 2 (reflectometer input)	23 dBm
General data
Display resolution	WVGA	800 × 480 pixel
Battery (R&S®HA-Z306 option)	capacity	72 Wh
	voltage	11.25 V (nom.)
	operating time with new, fully charged battery	Up to 9 hrs
Dimension	W × H × D	202 mm × 294 mm × 76 mm (8.0 in × 11.6 in × 3 in)
Weight		2.5 kg (5.5 lb)
